SimLivA II – SIMulation supported LIVer Assessment for donor organs II - Continuum-biomechanical modeling for staging of ischemia-reperfusion injury during liver transplantation and machine perfusion
PIs: Uta Dahmen, Matthias König, Tim Ricken, Hans-Michael Tautenhahn
Circulatory systems in the liver. The liver is perfused by oxygenated blood from the hepatic artery and by nutrient-rich blood from the
portal vein. In the liver lobules, blood flows from the terminal branches of these vessels to the central vein, which is located in the center of
the hexagonal structure. Bile is produced in the liver and drained from the liver in a separate biliary system. Drainage occurs in the opposite
direction to blood flow and is driven by diffusion due to concentration differences. Image created with BioRender.com.
Aim:
SimLivA aims to model the impact of mechanical alterations due to steatosis and ischemia on early ischemia reperfusion injury during liver transplantation and machine perfusion. Experimental and clinical data is used to validate the multiphase and multiscale PDE-ODE model of the liver lobule.

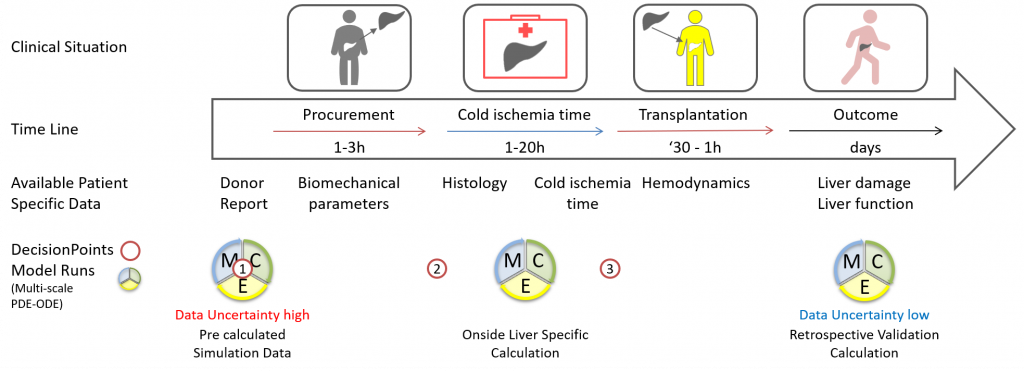

Flow chart of key steps of liver transplantation i) Organ procurement. Donor condition (e.g. obesity) affects graft quality (e.g. hepatic steatosis). ii)
Organ transport. Graft is stored in a cold preservation solution for the transport (cold ischemia time), leading to energy depletion and ischemic
damage of unknown severity. iii) Organ transplantation. Reconnecting graft and recipient blood vessels initiates reperfusion and reoxygenation
of the transplanted graft, resulting in ischemia reperfusion injury (IRI). iv) Outcome. Within 48h after transplantation, severity of IRI (damage and function
of the graft) can be assessed (delayed graft function/primary non-function), indicative of graft and patient survival. The three time-critical
decision points to accept or reject a liver graft are (1) before procurement; (2) after procurement and (3) immediately before transplantation.
Description:
Background and Motivation:
Liver transplantation (LTx) is a life-saving treatment for end-stage liver disease, but a critical shortage of donor organs remains a persistent challenge. The growing number of marginal donors—often older, multimorbid individuals—and the simultaneous increase in multimorbid recipients complicate clinical decision-making. Marginal liver grafts, typically affected by hepatic steatosis, exhibit impaired perfusion, metabolism, and function, increasing the risk of post-transplant complications.
Ischemia-reperfusion injury (IRI) during transplantation significantly impacts graft and patient outcomes. Machine perfusion has emerged as a promising strategy to mitigate these effects, extending preservation times and enabling ex vivo repair. However, there remains considerable uncertainty about the optimal perfusion method—normothermic or hypothermic oxygenated perfusion – and how to tailor these approaches to specific clinical scenarios.
Objective:
Building on the success of SimLivA I, which developed a coupled continuum-biomechanical model for IRI on liver lobule and cell scale, SimLivA II aims to refine this model to better predict IRI and support decision-making in LTx. Specifically, the project will extend the existing model to simulate different machine perfusion strategies and incorporate bile production as an indicator of liver function. SimLivA II seeks to develop a robust simulation-supported scoring system for organ allocation, enabling clinicians to optimize outcomes for marginal grafts.
Methods:
The project employs an iterative co-design approach to integrate modeling, experimental, and clinical perspectives. The project begins by developing finite element meshes based on experimental and clinical samples, enabling detailed simulations of liver tissue. Lobular geometries will be extracted, and zonated quantifications of proteins, damage, and steatosis will be incorporated to create simulation-ready geometries.
To capture the complexity of liver graft perfusion, the existing model will be extended to couple ordinary and partial differential equations across organ, lobule, and cellular scales. Temperature-dependent tissue properties, including deformation, permeability, and solute diffusivity, will also be incorporated to refine the simulation’s realism under varying machine perfusion conditions. A key extension involves adding bile transport and metabolism as a second diffusive pathway, complementing the blood transport mechanism and providing a more comprehensive representation of liver function under stress.
To support clinical decision-making, a surrogate modeling framework will be developed, leveraging a physics-informed, data-driven operator learning approach. This framework will enable near real-time predictions based on the complex multi-scale model. Experimental and clinical validation will be conducted using ex vivo liver perfusion and archived clinical samples, ensuring the model’s accuracy and applicability. The experimental findings will also guide parameterization, focusing on the effects of donor pathology, cold storage, and machine perfusion conditions.
The project culminates in the development of a simulation-supported scoring system that translates model outputs into actionable clinical insights. This scoring system will synthesize existing scoring methodologies with new data derived from the model, enhancing decision-making for marginal liver graft allocation and optimizing patient outcomes.
Impact:
SimLivA II will advance predictive modeling for LTx by mapping machine perfusion strategies into a multi-scale, continuum-biomechanical simulation framework. The project aims to provide clinicians with a robust decision-support tool to optimize the use of marginal grafts, ultimately improving patient outcomes and addressing the organ shortage crisis.
Involved Institutions:
Experimental Transplantation Surgery, Department of General, Vascular and Visceral Surgery, Jena University Hospital;
Institute of Structural Mechanics and Dynamics in Aerospace Engineering (ISD), University of Stuttgart;
Institute for Theoretical Biology, Humboldt University Berlin;
Experimental Hepatobiliary Surgery, Department of Hepatobiliary Surgery and Visceral Transplantation, University of Leipzig Medical Center
